Refurbished Lincoln Electric Vantage 580 NEW ENGINE Diesel Welder 12 MONTH/500HR WARRANTY

Specifications

Condition:Used

Category:Engine Driven Welder

Make:LINCOLN ELECTRIC

Model:VANTAGE 580

Year:2013

Type of Sale:In Stock

Amps:580 Amp

Electrical Phase:Three Phase

Fuel Type:Diesel

Label:In Stock

Voltage (V):40 V

Description

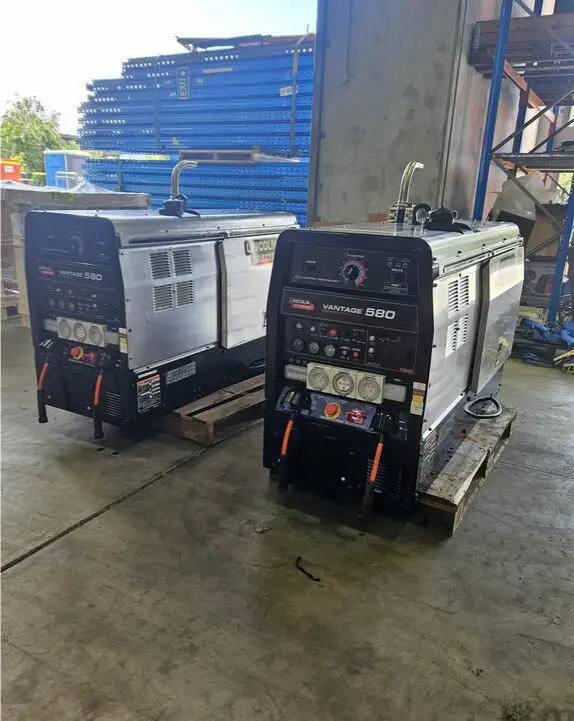

Machines in Brisbane stock currently being built.

Harvey Group is Australia’s leading refurbished welding machine supplier with over 200 machines sold Australia wide.

Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.

Key advantages to our refurbished machines.

• All refurbished machines are fully dismantled, blasted, primed and powder coated.

• All rotor bearings and brushes are replaced.

• All radiators are serviced (Pressure tested, flushed and painted)

• We check and replace all known wearing parts.

• Quality brand power outlets and circuit breakers.

• Engines are serviced with new fan belt and battery.

• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.

*12 Month/500 hour return to base parts and labour warranty (Filters and all wearing/rubber parts excluded).

Parts only warranty for pre-approved local repairs.

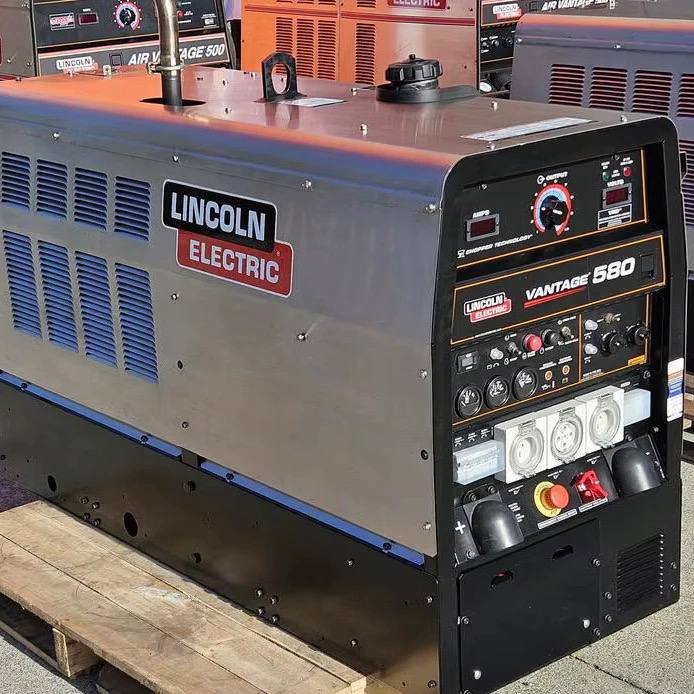

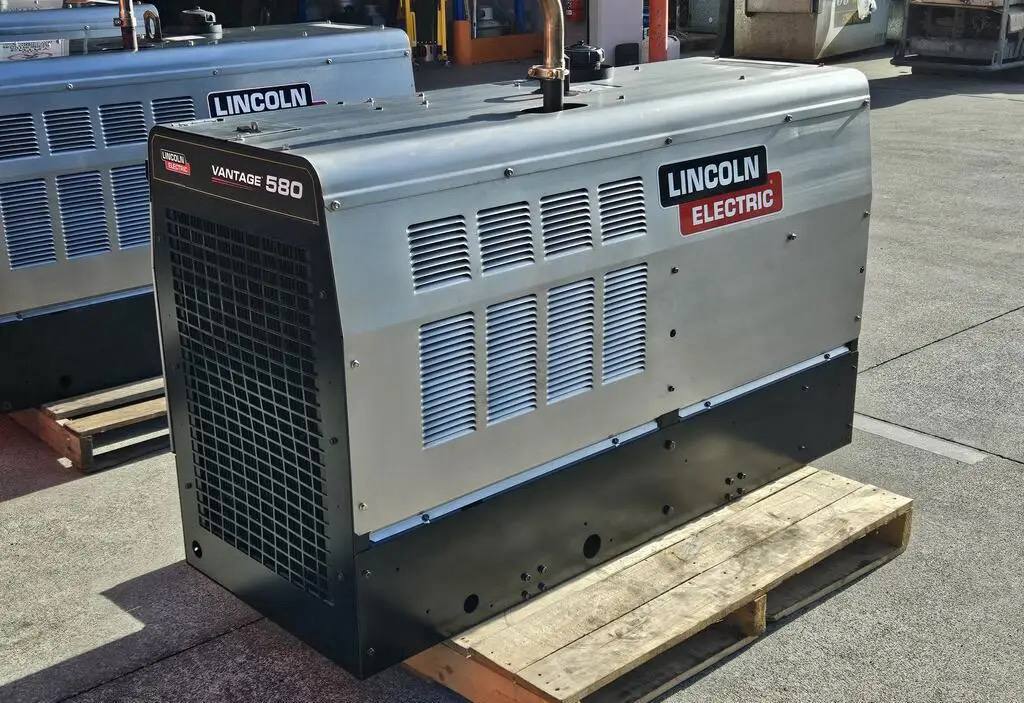

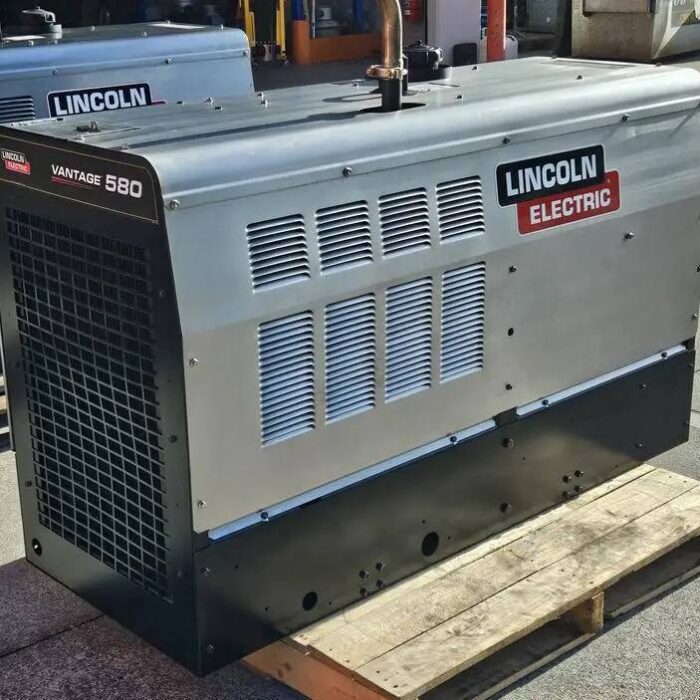

Lincoln Vantage 580 (60HZ)

Specifications

Welding output: 500A 100% (Maximum output 580A)

Auxiliary power: 20KW Three Phase 415 50Hz, 6.9KW Single Phase 240V 50Hz.

Dimensions: 913H x 642W x 1524L 586KGS

Powerful. Dependable. Safer.

If you are looking for a rugged, reliable and capable welder for a demanding mining

or construction site, a dependable hire fleet or for a quick turnaround repair job, the

Vantage® 580 has all the power you need and the safety features modern standards

demand. New standard features include a battery isolator switch for safer

maintenance procedures and a engine stop button to quickly shut the Vantage® 580

down in the event of an emergency.

Simple controls and Chopper Technology® deliver the low maintenance, long service

life, easy operation and great arc performance every owner demands in these

environments.

This multi-process powerhouse features 500 amps at 100%, or 525 amps at 60%

duty cycle, tested at temperatures up to 40°C. Plenty of AC 240V & 415V auxiliary

power – this unit delivers 20,000 watts.

You can depend on legendary engine reliability from Perkins® and superior Lincoln

arc performance.

• Simple to operate

– Select one of five Process Modes, including CC-Stick, CC-Pipe, CC-Gouging,

Touch-Start™ TIG or CV Wire, and then dial in the desired output.

• Optimised CC-Stick mode

– CC-Stick mode is optimised for general purpose and E7018 low hydrogen

electrodes.

• Arc control adjustment

– Produces a soft, buttery arc or a more forceful, digging arc to suit your

requirements.

• Touch-Start™ DC TIG welding

– Provides easy arc starting that avoids tungsten contamination and the use of

high frequency.

• 20kVA of auxiliary power

– Able to power up to three inverter power sources to give you up to four

stick electrode welding arcs for higher productivity. 240V and 415V IP66

rated outlets.

• Digital Volt/Amp meters

– Built-in preset function makes it easy to precisely set your procedures.

• Arc gouging

– Arc gouging with up to 13mm carbons.

– New carbon arc gouging waveform delivers improved gouging

performance including VRD

• Full instrumentation

– Fuel, oil pressure, engine temperature gauges and hour meter keep

you on top of monitoring engine performance.

• Perkins® 404D-22T Turbo diesel engine

– 43 horsepower, liquid-cooled, 4 cylinder Perkins® engine, includes

automatic engine idler for greater fuel economy and reduced noise.

• VRD Device

– Factory-fitted, built-in voltage reduction device (VRD) offers additional

protection for the operator. The VRD operates in the CC mode reducing

the OCV to a safer <20 volts, increasing operator safety when welding

is performed in environments with increased hazard of electric shock.

• Stainless steel enclosure
